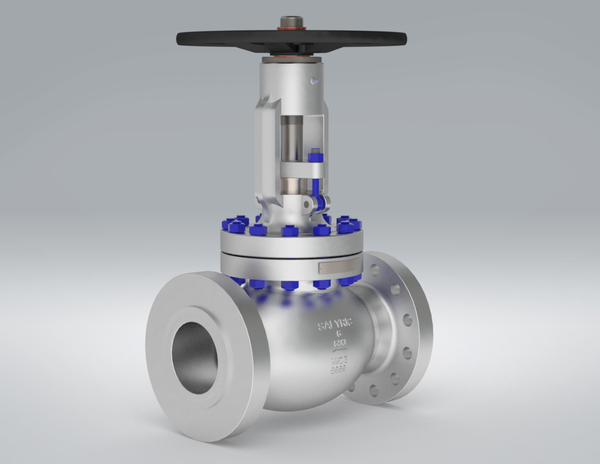

Globe Valve

Also known as Stop Valve, globe valves are a linear motion valves that are designed to stop, start and regulate flow. Safyric manufactures various types of globe valves including T type, Y type and Angle type.

Nominal Sizes: NPS 1/2 - 28 (DN 15 - 700)
Pressure Rating: Class 150 - 2500 (PN 16 -420)
End Connections: Flanged (FF, RF, RTJ), Butt-welded (BW), Socket-welded (SW), NPT, BSP
Materials: Carbon Steel, Alloy Steels, Stainless Steel, Duplex Stainless Steel (DSS), Super Duplex Stainless Steel (SDSS)
Mode of Operation: Hand wheel, Gearbox, Chain wheel

Request a Quote

Design & manufacture

API STD 623 Steel Globe Valves—Flanged and Buttwelding Ends, Bolted Bonnets

API STD 602 Gate, Globe, and Check Valves for Sizes DN 100 (NPS 4) and Smaller for the Petroleum and Natural Gas Industries

BS 1873 Specification for Steel Globe and Globe Stop and Check Valves (Flanged and Butt-Welding Ends) for the Petroleum, Petrochemical and Allied Industries

BS EN ISO 15761 Steel gate, globe and check valves for sizes DN 100 and smaller, for the petroleum and natural gas industries

ASME B16.34 Valves - Flanged, Threaded, and Welding End

End Connection

ASME B16.5 Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 Metric/Inch Standard

ASME B16.47 Large Diameter Steel Flanges NPS 26 Through NPS 60 Metric/Inch Standard

ASME B16.25 Buttwelding Ends

ASME B1.20.1 Pipe Threads, General Purpose (Inch)

ASME B16.11 Forged Fittings, Socket-Welding and Threaded

MSS SP 44 Steel Pipeline Flanges

Face-to-Face, End-to-End

ASME B16.10 Face-to-Face and End-to-End Dimensions of Valves

To be added

Dimensions and Weight
